Custom Resolution Utility (CRU)

[ToastyX]

(06-20-2023 01:12 AM)Xii-Nyth Wrote:  Hey Toasty, is this a know issue?

On the newest nvidia driver with the newest cru, the display settings area in nvidia control panel is hidden after making changes and restarting.

There are a few things I was using cru for, but the main ones are removing the useless 4096x2160 resolution that shows up on all 4k tvs, as it messes up a few things, and enabling 24 bit pcm audio, since things get confused when I passthough from my tv to my receiver.

I haven't heard of this happening. Sounds like a driver bug to me. Export a file with the changes you made and post it here.

[BigChungus0001]

As I was messing around with my XL2430 timings, I tested the absolute lowest values for the timings so I could squeeze the highest refresh rate, but I encountered some weird behaviors in the way.

First, I copied Falkentyne blanking timings from somewhere else to use in my monitor and my previous W2363D settings for the porchs and sync widths.
Front porch 24 | 3
Sync Width 32 | 5
Back porch 8 | 6
Blanking 58 | 10

I couldn't reduce the blanking timings further, so I think Falkentyne found the lowest possible values, therefore I changed the porchs and sync widths and found stability in these values.
Front porch 18 | 1
Sync Width 32 | 2
Back porch 8 | 6
Blanking 58 | 10

Then, I left the computer to do something else and when I came back, the computer wouldn't wake up, making me force power off. Because of that, I changed the porch value (I don't really know what was the culprit though).

Front porch 18 | 2
Sync Width 32 | 2
Back porch 8 | 6
Blanking 58 | 10

This never happened again, however sometimes the DCC/CI wouldn't work. When this happened, softMCCS reported "Not supported (missing DPtx services)".

1. Could timing parameters influence the wake up of Windows?
2. Is the DCC/CI behavior related to the timing parameters?

Thank you in advance, ToastyX.

[Kru1cif3r]

(06-26-2023 05:34 PM)ToastyX Wrote:

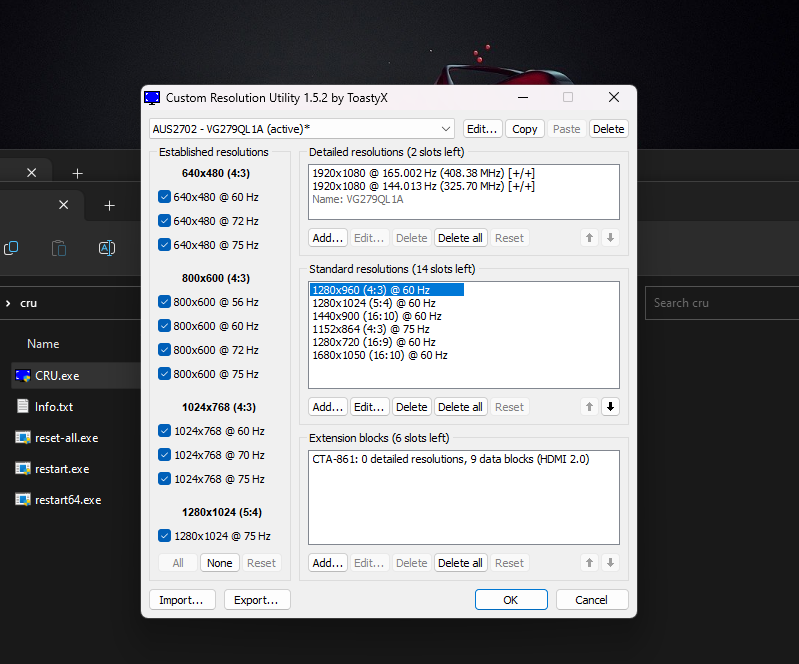

(06-26-2023 03:54 PM)Kru1cif3r Wrote:  Hi i have an external monitor which can be on 165 refresh rate. I just updated my laptop to windows 11 and suddenly my refresh rate options became limited. I have tried the intel graphic control and using CRU but it didnt change my refresh rate options on windows advanced display setting. I have added the 165hz into cru detailed resolution but it still didnt work. In the intel graphic app the supported resolutionfor 144 and 165 hz is still there. I am primary a fps gamer and so i need all the hz i have. Thanks for the help. attached are the screenshots. Also i cant change my refresh rate from monitor settings. i used to be able to just change it with cru back in windows 10 but now the options are just gone. I would like to also mention i cant add a custom resolution from nvidia since its an intel graphic and the intel graphic app doesnt have the refresh rate option when adding custom resolutions

If your monitor supports 165 Hz, then you shouldn't need to add it. I don't understand why you would use CRU to add a refresh rate that should already exist. Ask Intel why their driver is not allowing 165 Hz.

Im not sure either i used to have the 144hz option too but its missing as well. Isnt it weird that even after adding the detailed resolution from cru the 165 hz option is missing?

[LordGurciullo]

Hey again thanks for always responding. Quick question. Do you know if it is HDMI 2.1a that is giving me a way better color gradient with my LG oled 27inch. People with 40 series video cards with HDMI 2.1a are all saying this and 30 series users with just regular HDMI 2.1 are not. Do you know which part of that is whats giving it that much better image? I'm just curious if you might shed light on it if you know. Thanks for responding about the interview. If you ever change your mind I think it could be fun. You are a legend

[Game-R]

I'm trying to get my Dell Latitude 7640 laptop with Intel Iris Xe Graphics to, through a Thunderbolt dock, display on a pair of external HP 20" LP2065 monitors at their native 1600x1200 resolution.
For some reason, Windows is only allowing me to go up to either a 1280x1024 or 1280x960 resolution max.

Looking at the output of CRU.exe, it seems to show that the native resolution in the Detailed & Standard resolutions lists and nothing else I can do with it.


I've already ensured the latest Windows, Dell & Intel updates and drivers are installed yet this problem persists. My older Dell XPS 13 9360 with a Intel UHD 620 Graphics is able to run this exact similar setup with all monitors running at their native resolution.

What is going on here? Is there something I can do with CRU to force this resolution into the Windows Settings options?

[Xii-Nyth]

(06-26-2023 05:38 PM)ToastyX Wrote:

(06-20-2023 01:12 AM)Xii-Nyth Wrote:  Hey Toasty, is this a know issue?

On the newest nvidia driver with the newest cru, the display settings area in nvidia control panel is hidden after making changes and restarting.

There are a few things I was using cru for, but the main ones are removing the useless 4096x2160 resolution that shows up on all 4k tvs, as it messes up a few things, and enabling 24 bit pcm audio, since things get confused when I passthough from my tv to my receiver.

I haven't heard of this happening. Sounds like a driver bug to me. Export a file with the changes you made and post it here.

Alright Ill do that when I get back from vacation.

[nongrata23]

Hey Toasty,


I think you are the man who can help me to figure out and maybe save more users along the way....

I wonder how can i force an HDR Monitor to be always in HDR Gamma Curve only, because in default state when monitor is in HDR is white is around 400 nits, but if i open a video hdr file with white on it, is around 900nits.

So something triggers different gamma.. i wonder if it can be forced all the time at maximum.....

I want this to make HDR videos using Davinci direct

Thank you

[Mars]

Hi, Toasty, sorry to bother you with this request seeing you have many, I don't know who else to turn to
I'm trying to add a standard Full HD resolution to my XP Pen 15.6 Pro drawing display
This is the resolution for this tablet, but it's only displaying 1024x768 and 800x600 on Windows 11 Display Settings

CRU is not doing anything, even though the resolution is added as a standard resolution, it still says (Restart required) even after several restarts and reconnects
I also tried setting a Detailed Resolution with the same results

The only way I can get the resolution to work is by creating a custom resolution using the NVIDIA Control Panel
It does work, but it looks blurry as if it was a smaller resolution
It also reverts my main monitor to 60Hz and it doesn't let me change it back to 165Hz (Nvidia CP crashes) unless the custom resolution is deleted or the monitor disconnected (?)

If it's worth anything, CRU worked for me in the past on Windows 10

[ToastyX]

(07-05-2023 01:30 AM)Mars Wrote:  Hi, Toasty, sorry to bother you with this request seeing you have many, I don't know who else to turn to
I'm trying to add a standard Full HD resolution to my XP Pen 15.6 Pro drawing display
This is the resolution for this tablet, but it's only displaying 1024x768 and 800x600 on Windows 11 Display Settings

CRU is not doing anything, even though the resolution is added as a standard resolution, it still says (Restart required) even after several restarts and reconnects
I also tried setting a Detailed Resolution with the same results

The only way I can get the resolution to work is by creating a custom resolution using the NVIDIA Control Panel
It does work, but it looks blurry as if it was a smaller resolution
It also reverts my main monitor to 60Hz and it doesn't let me change it back to 165Hz (Nvidia CP crashes) unless the custom resolution is deleted or the monitor disconnected (?)

If it's worth anything, CRU worked for me in the past on Windows 10

You shouldn't have to add 1080p if the display supports it. It should work out of the box, so something is wrong. If the display doesn't have a valid EDID (listed as "Generic Non-PnP Monitor" with no resolutions), CRU will have no effect on Windows 11. If the display uses HDMI, you can use this to get a proper 1080p EDID: https://www.amazon.com/dp/B08RCMFLMK/?tag=mtests-20#ad

[ToastyX]

(07-04-2023 08:03 PM)nongrata23 Wrote:  Hey Toasty,


I think you are the man who can help me to figure out and maybe save more users along the way....

I wonder how can i force an HDR Monitor to be always in HDR Gamma Curve only, because in default state when monitor is in HDR is white is around 400 nits, but if i open a video hdr file with white on it, is around 900nits.

So something triggers different gamma.. i wonder if it can be forced all the time at maximum.....

I want this to make HDR videos using Davinci direct

Thank you

I don't have much experience with HDR. The HDR static metadata data block in the CTA-861 extension block lets you specify what gamma curves are supported. I'm not sure if changing that will have any effect.
