***ToastyX*** · 01-21-2019, 06:18 PM

(01-21-2019 12:28 PM)TnF Wrote: edit: Btw i am able to set the gpu in bios to discrete only, so that only the nvidia gpu is used. Would i be able to patch the pixel clock then and overdrive the 2 lanes available, or it won't work?

The patchers cannot change the clock speeds for DisplayPort.

Technologist · 01-22-2019, 07:04 PM

(01-21-2019 06:18 PM)ToastyX Wrote:
(01-21-2019 12:28 PM)TnF Wrote: edit: Btw i am able to set the gpu in bios to discrete only, so that only the nvidia gpu is used. Would i be able to patch the pixel clock then and overdrive the 2 lanes available, or it won't work?
The patchers cannot change the clock speeds for DisplayPort.

Hi Toasty, I still own my Yamakasi CatLeap Q270 B2 that runs perfectly at 120Hz. I have a GTX 1080ti GPU

I read an older 2016 post where you got a B2 to FreeSync but not with a full Dual link display port so you could only run 60Hz. Did you find a bandwidth workaround? Could my CatLeap FreeSync at 120Hz with my GTX 1080ti? I'm Familiar with your CRU and the Nvidia Patcher.

Do you have any post, guides or the setup files to make it easy for me to get FreeSync running on my CatLeap B2?

***ToastyX*** · 01-22-2019, 09:37 PM

(01-22-2019 07:04 PM)Technologist Wrote: I read an older 2016 post where you got a B2 to FreeSync but not with a full Dual link display port so you could only run 60Hz. Did you find a bandwidth workaround?

No. Technically the Catleap could do it but the driver has no way to activate FreeSync with dual-link DVI.

(01-22-2019 07:04 PM)Technologist Wrote: Could my CatLeap FreeSync at 120Hz with my GTX 1080ti? I'm Familiar with your CRU and the Nvidia Patcher.

No, NVIDIA does not currently support HDMI FreeSync.

Technologist · 01-22-2019, 11:15 PM

(01-22-2019 09:37 PM)ToastyX Wrote:
(01-22-2019 07:04 PM)Technologist Wrote: I read an older 2016 post where you got a B2 to FreeSync but not with a full Dual link display port so you could only run 60Hz. Did you find a bandwidth workaround?
No. Technically the Catleap could do it but the driver has no way to activate FreeSync with dual-link DVI.

(01-22-2019 07:04 PM)Technologist Wrote: Could my CatLeap FreeSync at 120Hz with my GTX 1080ti? I'm Familiar with your CRU and the Nvidia Patcher.
No, NVIDIA does not currently support HDMI FreeSync.

What about using a Dual Link DVI to DisplayPort 1.4 adaptor? There are ones out that will support 120Hz 1440P and 4K 60Hz now.

bilanciamist · (Last edited: 01-23-2019, 05:12 PM by bilanciamist)

Hi,

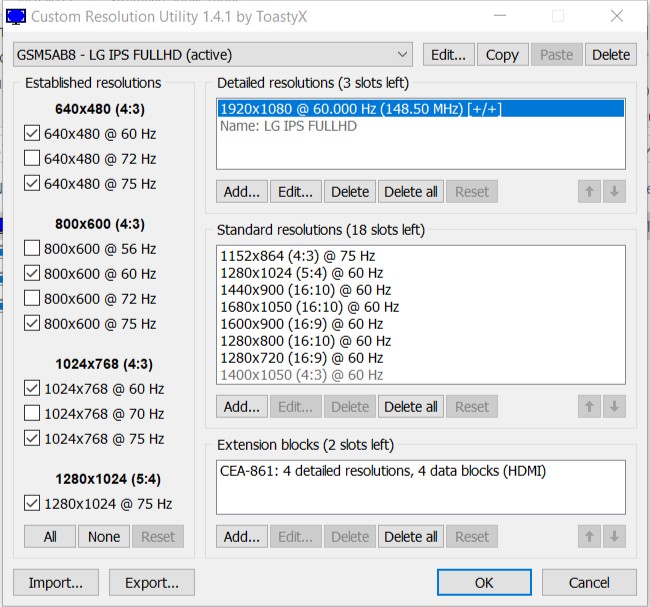

I'd like to set fullRGB output for the HDMI connection in my notebook. It is an "old" Sony Vaio, with Nvidia 330m (driver Nvidia 342.01) and Windows 10.
I followed this guide: https://www.reddit.com/r/nvidia/comments...vidia_not/

I tried to create a new detailed resolution 1920x1080 PC resolution (native), but it didn't work.
I tried to change a lot of CRU settings.
Maybe it depends on my HDMI port, the extension block or the frequency.

Is there a system to fix this problem?

Thanks

iakoboss7 · (Last edited: 01-24-2019, 11:06 AM by iakoboss7)

hello and thank you for this amazing tool!

i have the monitor AOC Q3279VWFD8, its freesync range (works only under display port 1.2) is 48-75.
with cru i can use 38-76 (being reported as 38-75 in amd settings) with no problem (it flickers with anything bellow that in full screen games).

the thing is that i cant overclock the max freesync limit, for example i put 38-78 in cru but there is no option in display adapter properties.
i just need 2 more hz to trigger LFC!!!!

is this a hard limit? can it be bypassed with any of your tools?

Garwinski · 01-24-2019, 11:21 AM

(01-24-2019 11:03 AM)iakoboss7 Wrote: hello and thank you for this amazing tool!

i have the monitor AOC Q3279VWFD8, its freesync range (works only under display port 1.2) is 48-75.
with cru i can use 38-76 (being reported as 38-75 in amd settings) with no problem (it flickers with anything bellow that in full screen games).

the thing is that i cant overclock the max freesync limit, for example i put 38-78 in cru but there is no option in display adapter properties.
i just need 2 more hz to trigger LFC!!!!

is this a hard limit? can it be bypassed with any of your tools?

You will have to 'overclock' your monitor to 78hz as well if you want to extent the Freesync limit to that value, and test if that is stable and there is no dropped frames or anything.

iakoboss7 · (Last edited: 01-24-2019, 12:07 PM by iakoboss7)

as i sad i do that, but it does NOT show up in display adapter properties so i can select it as refresh rate.

Technologist · (Last edited: 01-24-2019, 12:20 PM by Technologist)

(01-24-2019 12:07 PM)iakoboss7 Wrote: as i sad i do that, but it does NOT show up in display adapter properties so i can select it as refresh rate.

Your screenshot doesn't show any added detailed resolutions? Did you run CRU's restart64.exe so that it recognizes the new refresh rates?

Don't forget to patch the Nvidia drivers to open up higher refresh rates.
https://www.monitortests.com/forum/Threa...ck-Patcher

iakoboss7 · (Last edited: 01-24-2019, 12:33 PM by iakoboss7)

i think you are answering to the wrong person, i have not uploaded any screenshot, and i use an amd gpu.

(01-24-2019 11:03 AM)iakoboss7 Wrote: hello and thank you for this amazing tool!

i have the monitor AOC Q3279VWFD8, its freesync range (works only under display port 1.2) is 48-75.
with cru i can use 38-76 (being reported as 38-75 in amd settings) with no problem (it flickers with anything bellow that in full screen games).

the thing is that i cant overclock the max freesync limit, for example i put 38-78 in cru but there is no option in display adapter properties.
i just need 2 more hz to trigger LFC!!!!

is this a hard limit? can it be bypassed with any of your tools?
